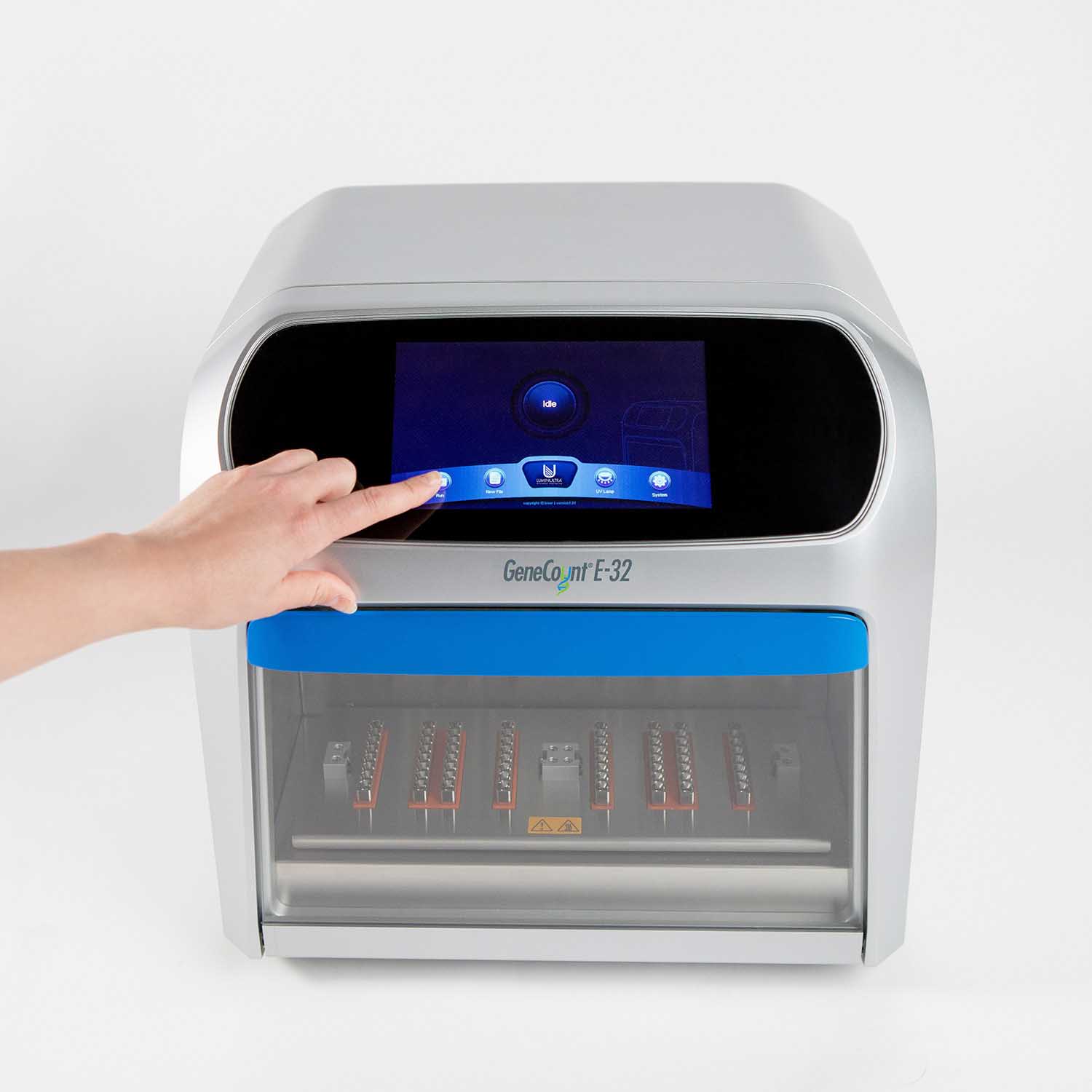

GeneCount® E-Series Auto Purifiers

LuminUltra’s GeneCount® Auto Purification devices automate the most-labour intensive step of the qPCR testing protocol, improving efficiency and reducing the risk of human error.

Choose your capacity

Our team responds to quote requests within 1 business day.

Description

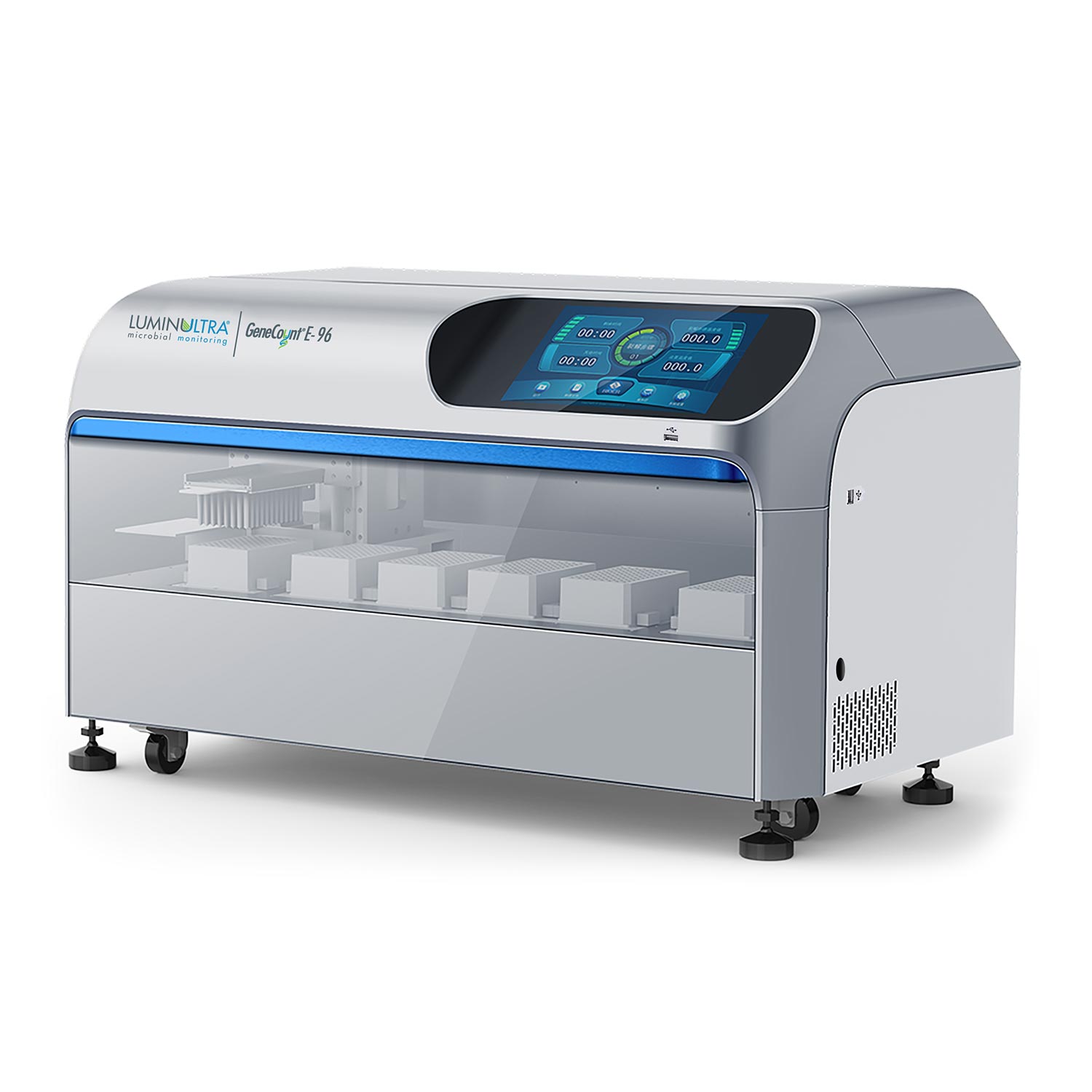

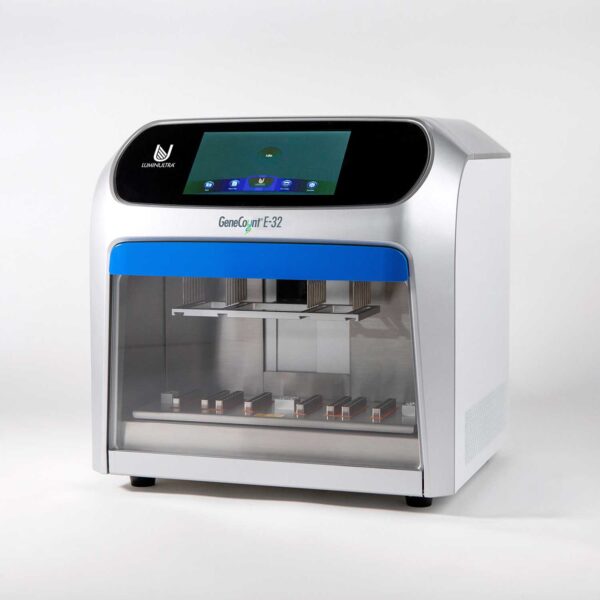

LuminUltra’s GeneCount® Auto Purification devices enable increased throughput of purified RNA, ready for assay, in less than an hour. Choose between the E-32 or the E-96 depending on capacity needs.

The GeneCount® E-series was developed to complement your lab’s GeneCount® qPCR workflow — improving efficiency, providing trustworthy and reproducible results, and reducing the risk of human error.

 Key benefits

  • Optimized workflow: Automates the most labor-intensive step of the testing protocol, freeing up time and resources
  • High throughput: Run up to 32 or 96 samples at a time, depending on device
  • User friendly interface: Displays all running programs and parameters
  • Highly efficient: Extract samples in less time than traditional manual methods
  • Standardized methodology: Reduce the potential for human error and enjoy the confidence of knowing that you’re extracting the same RNA every time
  • Safety: UV light technology ensures built-in sanitization and cleaning

All devices are CE, RoHS and WEEE Certified

Additional information

Capacity

E32, E96

Workflow

Extraction

Specifications

SpecificationE-32E-96
Sample capacity1 – 321 – 96
Consumables96 Deep well Plate + 8-strip Tip96 Deep well Plate + 96-tips comb
Sample processing capacity20 ~ 1000μl10 ~ 1000μL
Well yield uniformityCV < 3%
Magnetic beads recycling efficiency≥ 98%≥ 99%
Operating temperature10°C ~ 30°C10°C ~ 40°C
Operating humidity range20% – 70%≤ 85%
Heating temp control range Lysis heating temp @ room temp+ 5°C ~ 125°C+10°C ~ 120°C
Elution heating temp @ room temp+ 5°C ~ 125°C+10°C ~ 120°C
MixingMultiple modes, multiple-speed, adjustable
Disinfection/decontamination methodUV Light
Reagent typeMagnetic beads based reagent
Communication interfaceUSB Compatible
Power supplyAC100-240V, 50Hz/60Hz, 600WAC 100-240V, 50Hz/60Hz, 1000W
Dimensions43cm x 40cm x 44cm91cm x 50cm x 57cm
Weight32.5kg81.5kg
