GeneCount® Q-96 Thermocycler
LuminUltra’s GeneCount® Q-96 is a powerful thermocycler designed specifically for high-capacity qPCR testing needs. Optimize your qPCR workflow with rapid results in under 3 hours.
To learn more about qPCR, visit GeneCount® qPCR testing solutions – LuminUltra.
Our team responds to quote requests within 1 business day.
Description
Elevate your lab’s capabilities with the GeneCount® Q-96, our high-capacity, 96-well thermocycler developed specifically for laboratories. Extend this competitive offering to your clients, or bring costly, outsourced qPCR testing in-house.
LuminUltra’s GeneCount® Q-96 delivers high performance quantitative PCR for the detection of the analyzers from nucleic acid samples, including pathogens and human genes.
GeneCount® Q-96 uses a real-time fluorescence detection method that allows for amplification and detection in the same tube without post-processing.
The GeneCount® Q-96 comes with pre-loaded cycling parameters, standard curves, and other required information specific for each individual target.
Key benefits

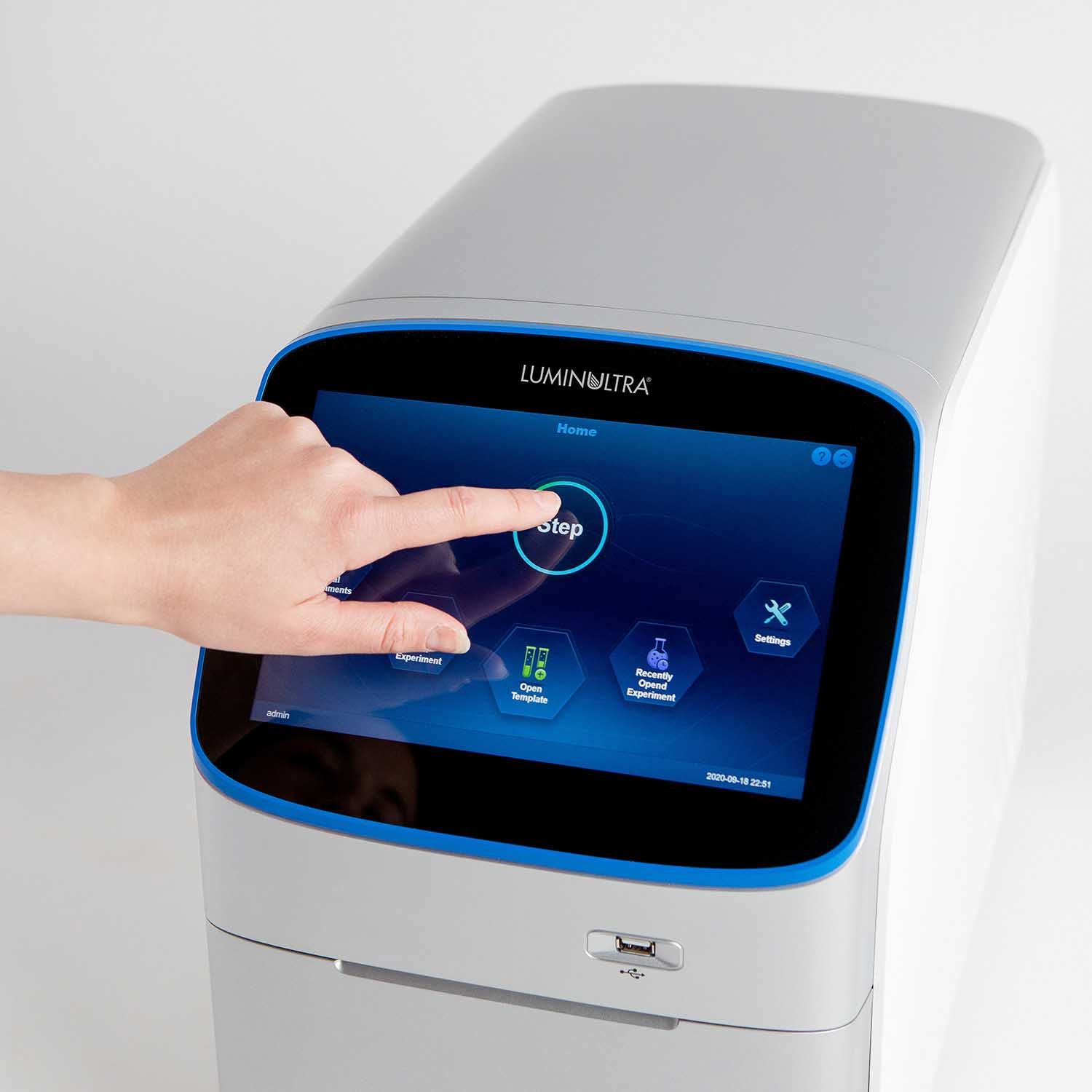

- Easy-to-use interface featuring large touchscreen
- Designed to immediately optimize your qPCR workflow
- Advanced thermoelectric technology ensures fast and steady heating and cooling of the ultra-fast heat cycling system
- Uses maintenance-free long-life LED excitation light source
- Precise optical path system and ultra-sensitive PMT system provide the most accurate and sensitive fluorescent detection
- Six fluorescent channels provide multiplexing capabilities and support for intercalating dyes, hydrolysis and FRET probes
- Equipped with ultra-low-light sensitive CMOS- based fluorescent imager, delivering high performance and flexible imaging capabilities
- Rapid results in less than three hours (including purification)
- Range of available reagent/assay panels available for a variety of targets
Our Q-96 devices are CE, RoHS and WEEE Certified.
Additional information
| Workflow | Thermocyclers |
|---|
Specifications
| Specification | Q-96 |
|---|---|
| Sample capacity | 96 x 0.2mL (suitable for single PCR tubes, and 8-strip PCR tubes) |
| Fluorescent channels | Channel 1 – FAM, SYBR Green I Channel 2 – VIC, HEX, TET, JOE, TAMRA, CY3, NED Channel 3 – ROX, Texas-Red Channel 4 – Cy5 Channel 5 – Cy5 Channel 6 – for customized |
| Temperature range of block working | 4 – 105°C (minimum increment 0.1°C) |
| Heating/cooling rate | 6°C/s |
| Temperature fluctuation | ≤ ± 0.2°C |
| Temperature accuracy | ≤ ± 0.15°C |
| Temperature uniformity | ≤ ± 0.2°C |
| Temperature range of hot lid working | 30 – 110°C |
| Running mode | Continuous running |
| Operating system | Windows 10 |
| Power supply | 100-240V, 50/60Hz, 600VA |
| Dimensions | 38cm x 40cm x 38cm |
| Weight | 20kg |
Components
- GeneCount® Q-96 qPCR device
- Power cable
- Optional ethernet cable
- Hot-lid pressure balance rack
- Three PCR 8-well tube strips
