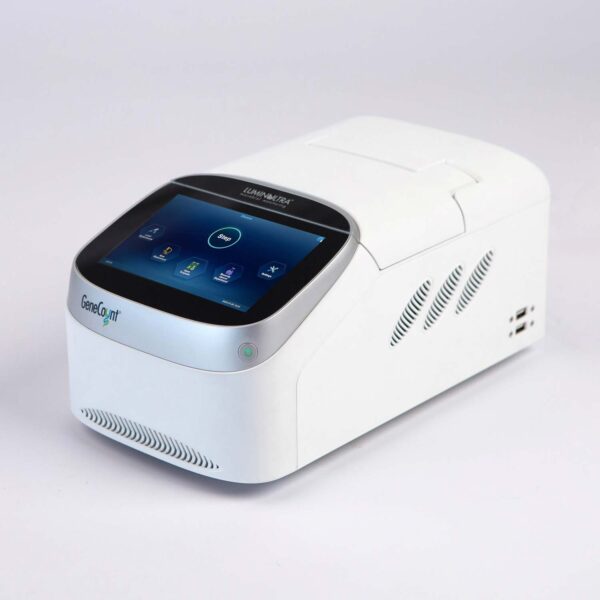

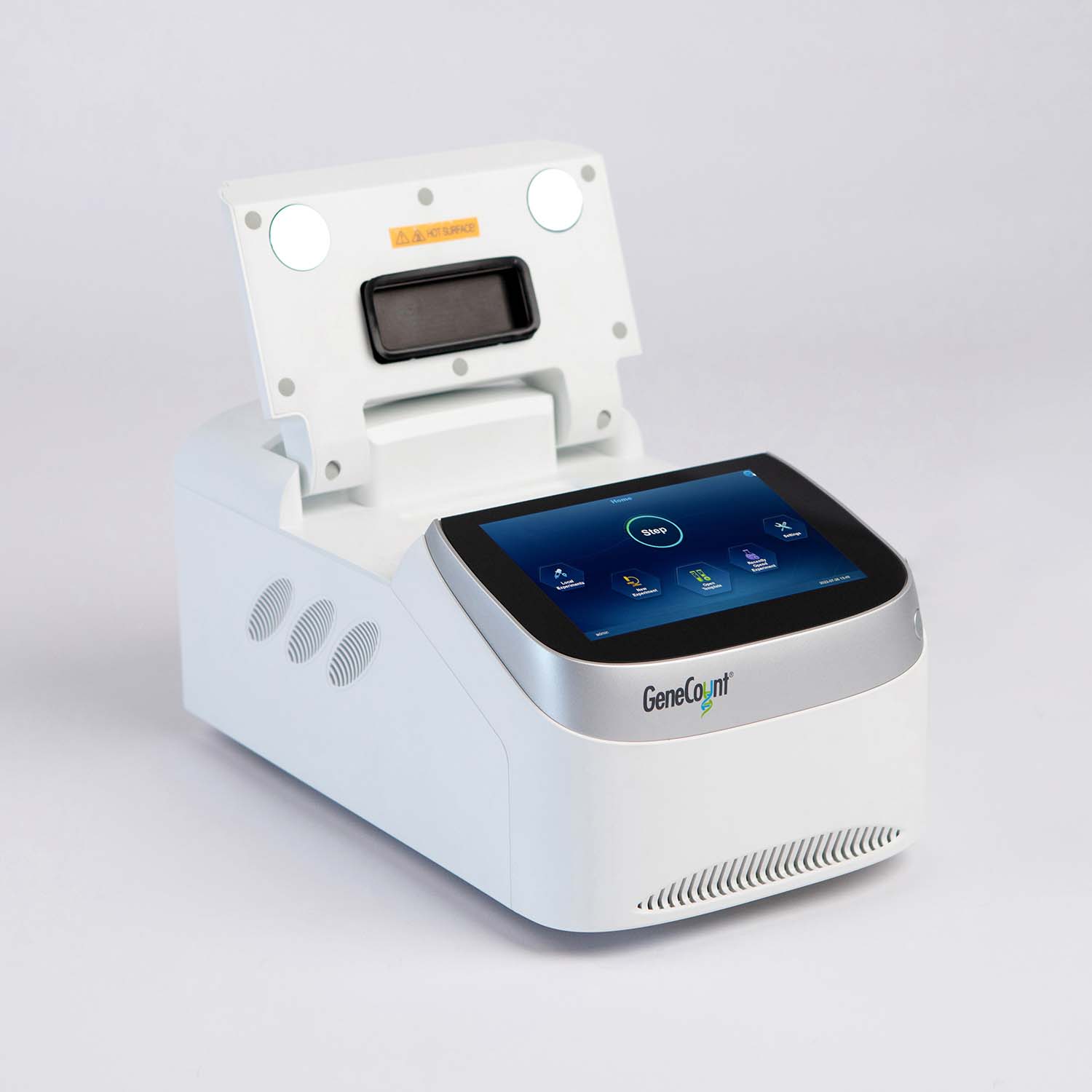

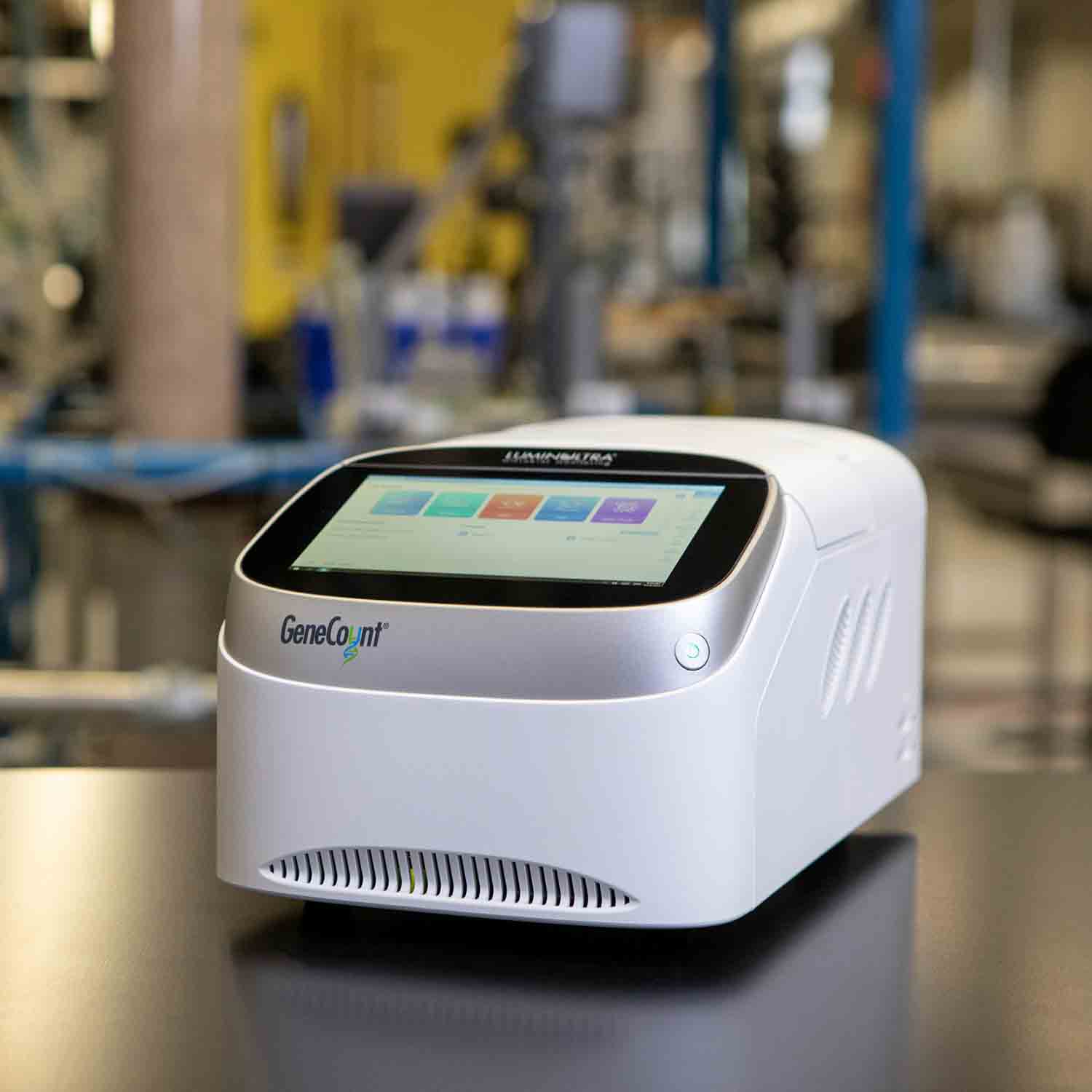

GeneCount® Voyager Thermocycler

The LuminUltra GeneCount® Voyager thermocycler delivers a powerful quantitative PCR system. Analyze your samples, review the results, and make immediate targeted treatment decisions in as little as 2 hours — from your lab or anywhere.

To learn more about qPCR, visit GeneCount® qPCR testing solutions – LuminUltra.

Configure your qPCR workflow

Tell us about your process and select assay targets to help us build your custom quote.

1. Sample types

2. Sample preservation method

Do you need to preserve samples in the field?

3. DNA extraction method

Manual extraction

Requires an E-series auto-extraction device.

4. Assay targets

Choose from our available assays.

Our team responds to quote requests within 1 business day.

Description

LuminUltra’s GeneCount® Voyager delivers high performance quantitative PCR, enabling real-time detection of microbial presence.

Run analysis on samples, review results, and make immediate targeted treatment decisions based on that feedback, all in as little as 3 hours.

Deploy it at an in-field lab, or use our preservation qKits to ensure the microbial community in your sample remains stable as your samples are brought back to a centralized location for analysis.

The GeneCount® portfolio includes everything you need to complete your molecular testing, including devices, assays, preservation and purification kits

Key benefits

  • Highly flexible system allows for analysis of multiple samples and multiple assays in a single run.
  • Compact and rugged design suitable for portability in the field, and small footprint for lab environments.
  • No internal moving parts and no need for calibration
  • Powerful Windows-based software for data analysis can be run stand-alone on device touchscreen, or through a PC/laptop connected with WiFi or Ethernet connection
  • Four fluorescent channels provide multiplex capabilities and support for intercalating dyes, hydrolysis and FRET probes
  • Rapid results in as little as 3 hours (including purifying DNA)
  • Optimized qPCR workflow designed for immediate use out of the box
  • Training and ongoing support from LuminUltra’s product and applications experts
  • Range of available reagent/assay panels available for a variety of targets.

GeneCount® Voyager is CE, RoHS and WEEE Certified.

Additional information

Workflow

Thermocyclers

Specifications

SpecificationGeneCount® Voyager
Capacity16 wells
Fluorescent channelsChannel 1 – FAM, SYBR
Channel 2 – VIC, HEX, TET, JOE, CY3, TAMARA
Channel 3 – ROX
Channel 4 – Cy5
Excitation sourceLong-life LED
Tube/plate format0.2mL 8-tube strip
Temperature uniformity< ± 0.25°C
Max temperature ramp rate (heating)≥ 5°C
Max temperature ramp rate (cooling)≥ 3°C
Operating systemWindows 10
ConnectionEthernet
Power supply110V/240V AC
Assay controlsPositive/Negative/Internal
Dimensions364mm x 210mm x 180mm



Components

  • GeneCount® Voyager qPCR device
  • Power adapter and power cable
  • WiFi Adapter
  • Bluetooth mouse and keyboard

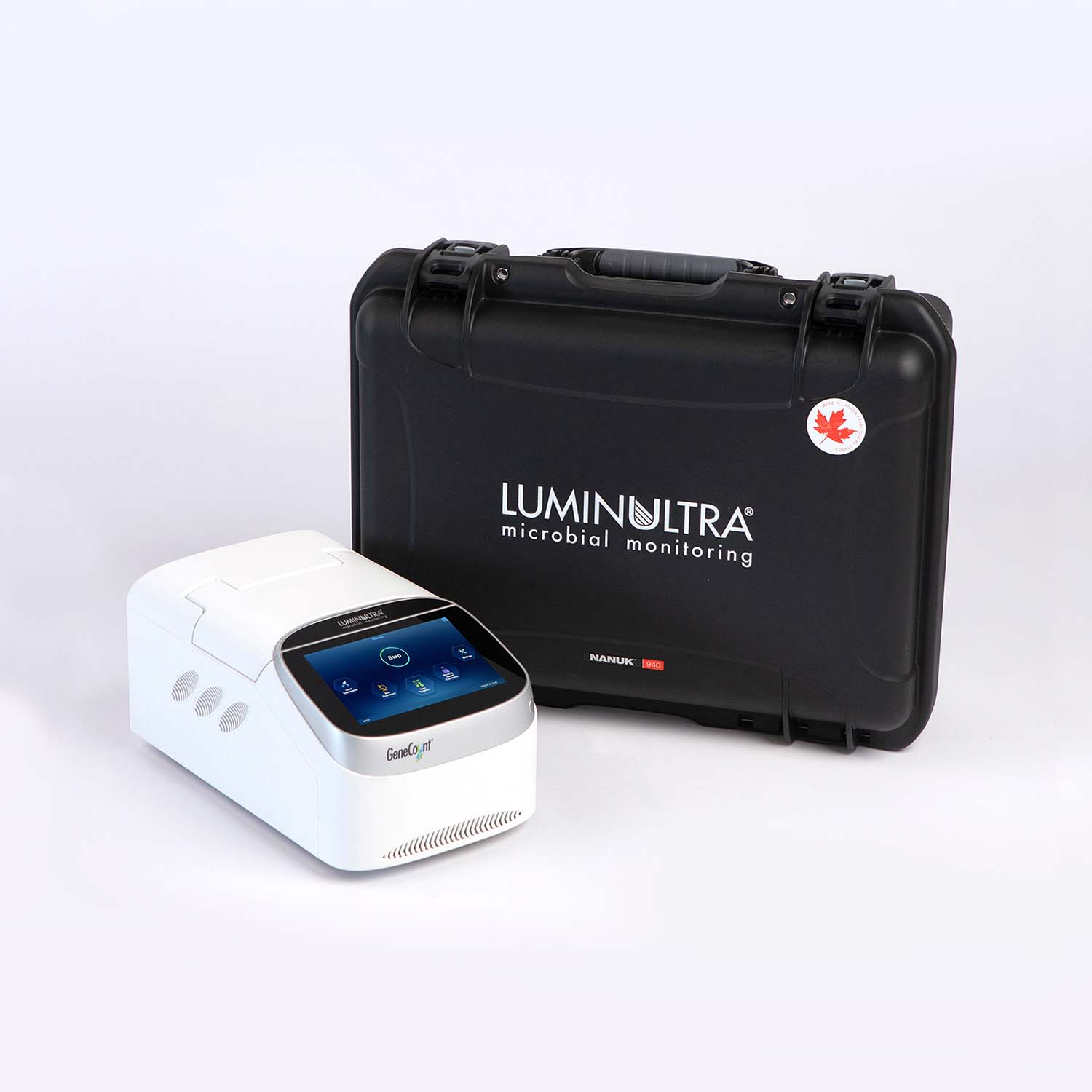

  • Protective travel case
  • USB cable
  • Ethernet cable
  • 4-way rotating tube rack
  • Dry bath
  • Centrifuge
  • Magnetic rack
  • Magnetic sleeves
  • Pipets

camryn.mcgregor@luminultra.com

View compatible assays

All qKit assay kits guarantee robust, repeatable results across diverse industrial samples.
