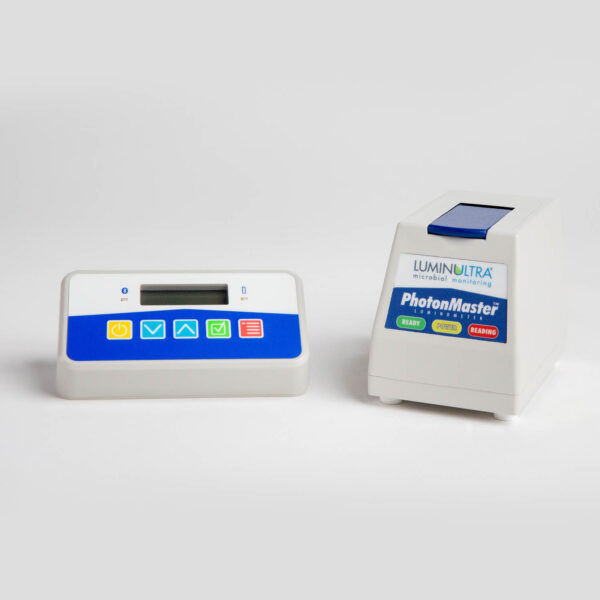

LuminUltra PhotonMaster™ Luminometer
The LuminUltra PhotonMaster™ is a portable luminometer that pairs with LuminUltra’s 2nd Generation ATP test kits for comprehensive microbial detection.
It’s sensitive enough for the cleanest sample, robust enough for the toughest testing environment, and cost-friendly for any budget.
Suitable for lab or field use, this lightweight device delivers rapid results in minutes.
Our team responds to quote requests within 1 business day.
Description

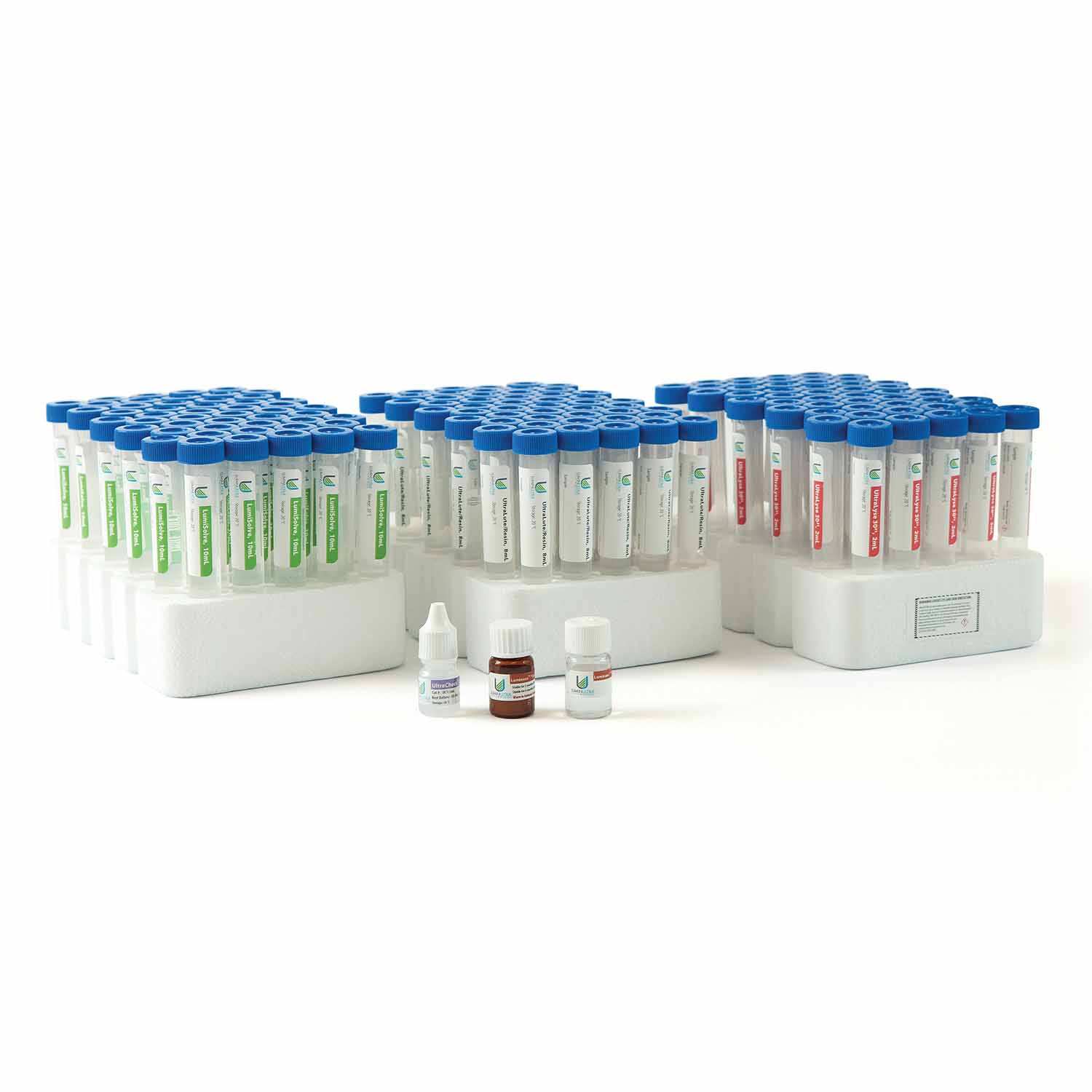

The LuminUltra PhotonMaster™ is a robust, affordable, and portable luminometer designed for versatile ATP testing. Using LuminUltra’s 2nd Generation ATP® test kits, it detects the amount of light produced by total or free ATP in fluid or solid samples to directly measure the total active biomass in seconds, thus ensuring efficient operation of your processes.

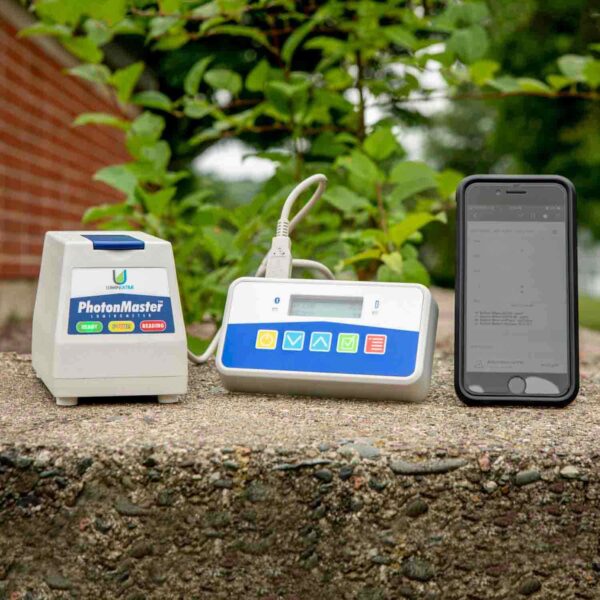

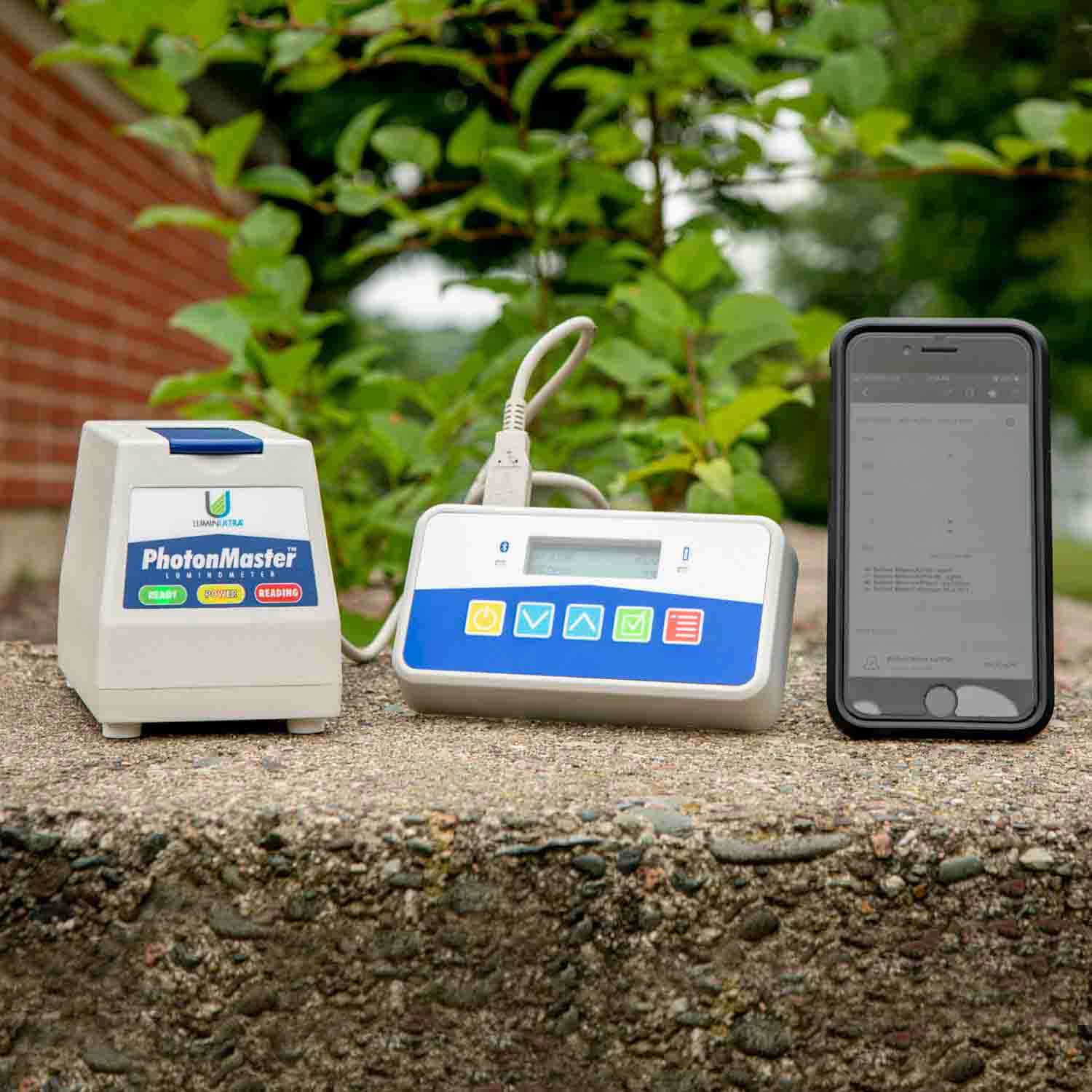

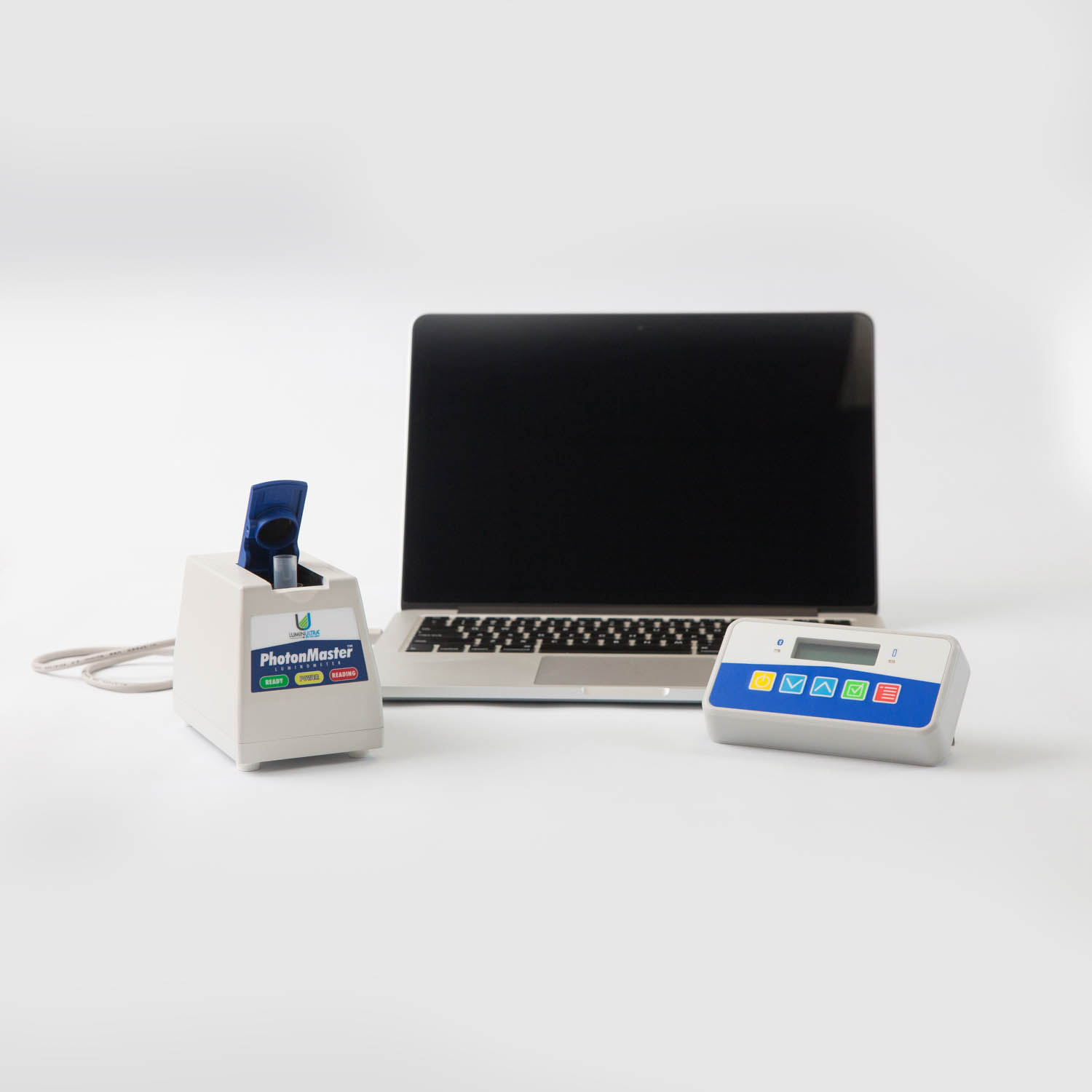

The device is enhanced with the PhotonMaster™ Bluetooth Module (PBM), allowing independent data generation and rapid collection and analysis via Bluetooth. Paired with our software, it delivers instant data at your fingertips.

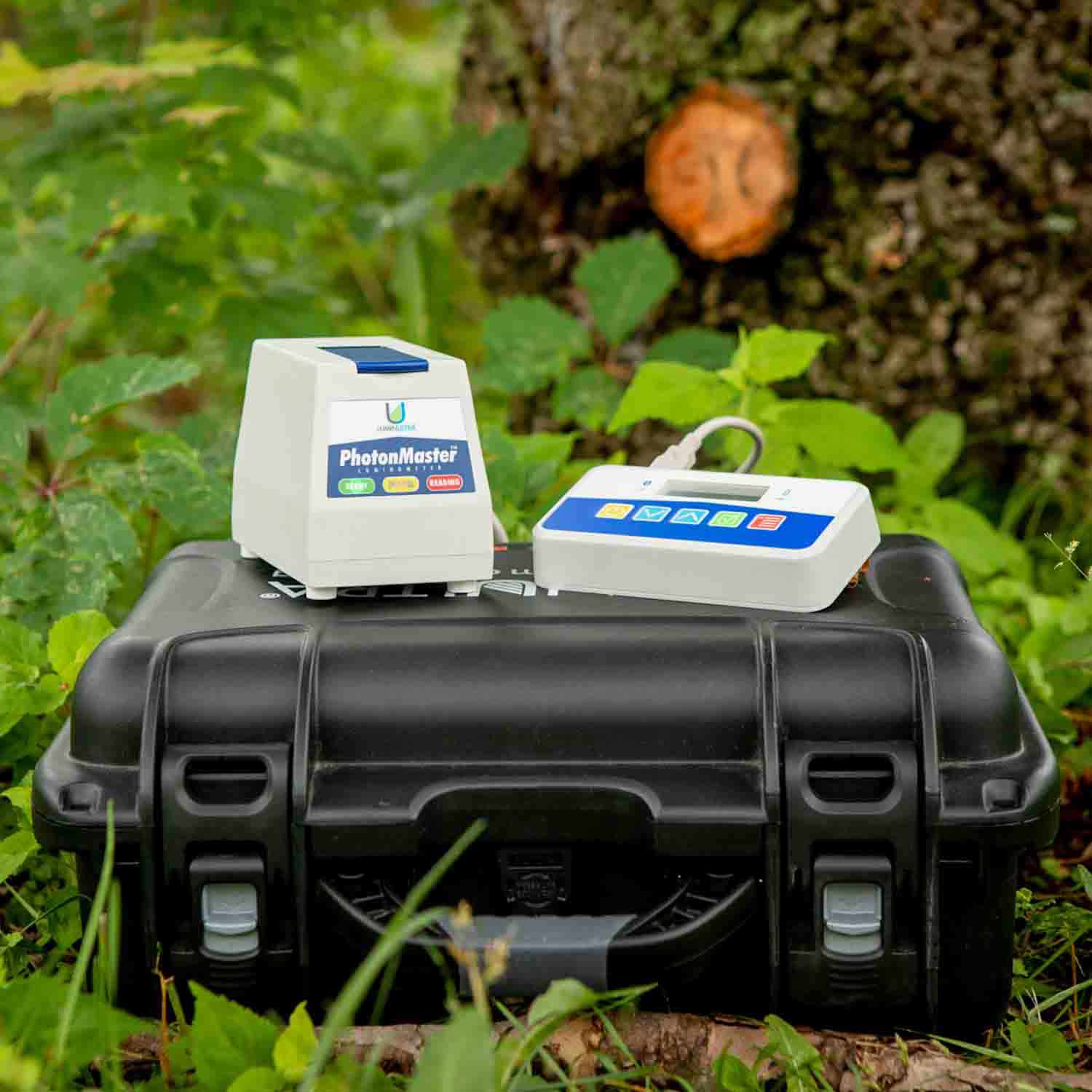

This product’s flexibility extends to both lab and field environments, thanks to its lightweight and compact design.
Speed & accuracy
The PhotonMaster™ provides a fast, precise insight into your microbes. It measures all microorganisms, delivering results within minutes of sampling for immediate action.
Simplicity
The PhotonMaster™ offers a straightforward testing procedure, enabling you to routinely apply the test and act based on your results.
Insight
With proactive monitoring and data analytics, the PhotonMaster™ helps you catch potential issues before they escalate, keeping your operations running smoothly.
Compliance
CE and FCC Part 15 compliant.
Additional information
| Technology | 2nd Generation ATP® |
|---|---|
| Industry | Aviation, Industrial water, Marine, Oil & gas, Paints & coatings, Pulp & paper, Wastewater, Water treatment & distribution |
Specifications
LuminUltra PhotonMaster™
| Linear Dynamic Range (ATP) | 4 x 10-12 to 1 x 10-6M ATP |
| Linear Dynamic Range (RLU) | 0 to 10,000,000 RLU |
| Assay Tube Chamber | φ12 x 55mm |
| Detector | Photomultiplier Tube (PMT) |
| Interface | USB, 3ft cord |
| Power | USB 5-volt <120mA |
| Control Method | PhotonMaster™ Bluetooth Module, myLuminUltra software |
| Dimensions (mm) | 77W x 125D x 88H |
| Weight | 1.01lbs (460g) |
| Storage Temperature | -10 to +50°C |
| Operating Temperature | +5 to +35°C |
LuminUltra PhotonMaster™ Bluetooth Module
| Battery | 2600 mAh Lithium-Ion (1500 readings on full charge) |
| Luminometer USB Connection | Type A Female; 100mA output |
| PC/Power USB Connection | Type B Micro Female; 500mA output |
| Bluetooth Connection | Bluetooth Low Energy, Bluetooth Classic |
| Control Method | Onboard, USB-to-PC, Bluetooth-to-mobile |
| Dimensions (mm) | 130 x 70 x 26 (L x W x H) |
| Weight | 152g |
| Storage Temperature | -10 to +50°C |
| Operating Temperature | +5 to +35°C |
| Memory | 1000 sample points |

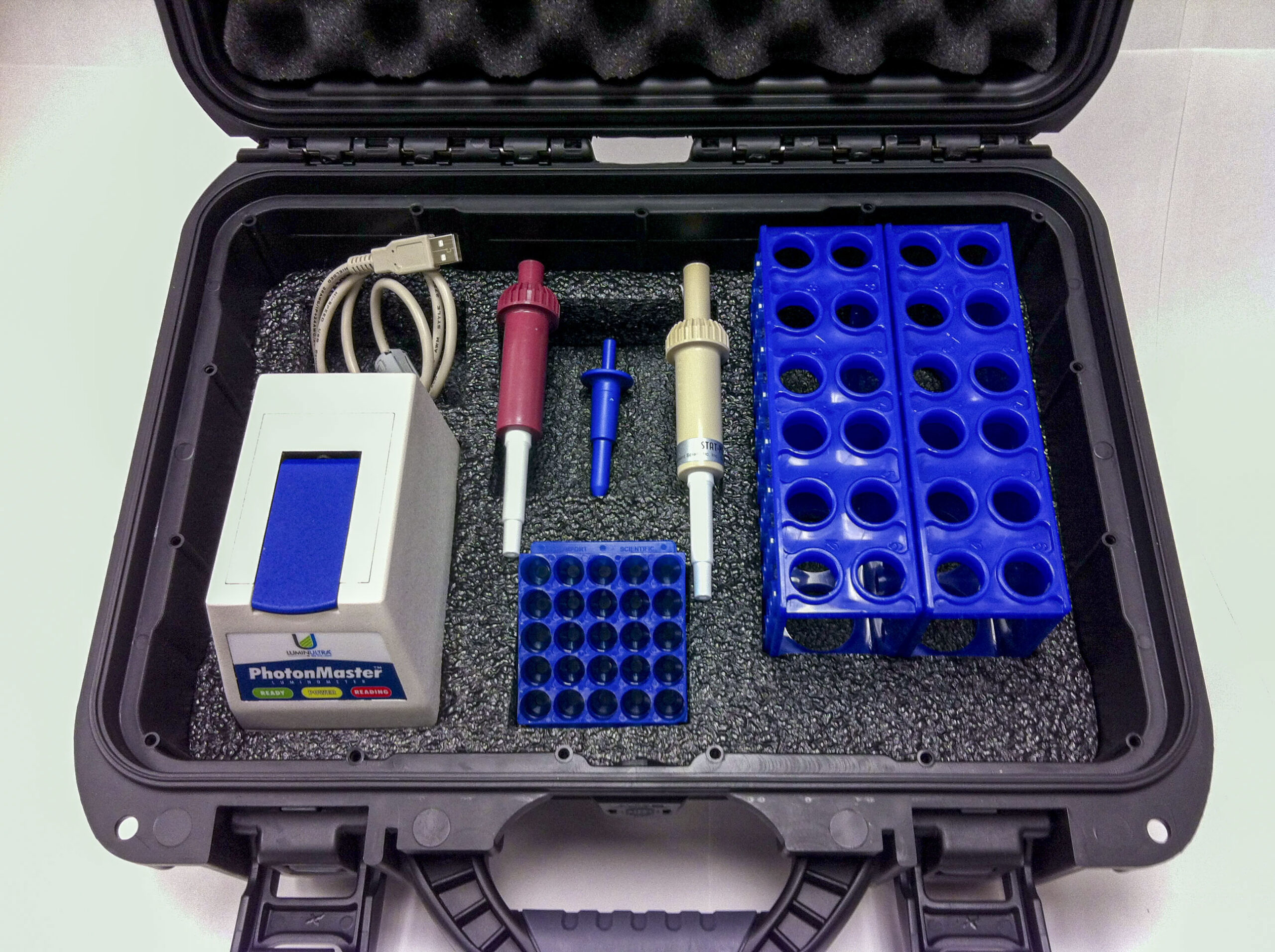

Components
- PhotonMaster™ Luminometer
- PhotonMaster™ Bluetooth Module (PBM)
- USB cord
- Rugged field case
- Pipettes
- Test tube racks
- Tote bag for consumables
